13.46*12.7*17.75mm SMPS Flyback Transformer 6.2 g Weight PA6340-AL_

Brand Name : Shareway

Model Number : PA6340-AL_

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 5000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 175pcs/Reel

Product name : 13.46*12.7*17.75mm 6.2 g Weight PA6340-AL_ Flyback Transformer

Size : 13.46*12.7*17.75mm

Mount : SMT / SMD

Type : Flyback Transformer

Bias winding output : 10 V, 20 mA

pin : 5+5

Contact Now

13.46*12.7*17.75mm 6.2 g Weight PA6340-AL_ Flyback Transformer

Description:

• Flyback transformer for 10 W PoE applications
• Developed to work with TI TPS23753A PoE controller
• 1500 Vrms isolation (hipot), one minute from primary and bias to secondary and sync

Core material Ferrite
Terminations RoHS tin-silver (96.5/3.5) over tin over nickel over phos
bronze.
Weight 6.2 g
Ambient temperature –40°C to +85°C
Maximum part temperature +125°C (ambient + temp rise)
Storage temperature Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

Part

number

L at 0 A

±7%

(μH)

L at Ipk

min

(μH)

 DCR max (Ohms)

Leakage

inductance

max (μH)

Capacitance

max (pF)

 Turns ratio Output
pri sec bias sync pri : sec : bias : sync
PA6340-AL_ 133.0 123.7 0.330 0.0135 0.230 0.190 1.50 70 1 : 0.167 : 0.361 : 0.167 5.0 V, 2.0 A

13.46*12.7*17.75mm 6.2 g Weight PA6340-AL_ Flyback Transformer

Shape and Dimensions:

13.46*12.7*17.75mm SMPS Flyback Transformer 6.2 g Weight PA6340-AL_

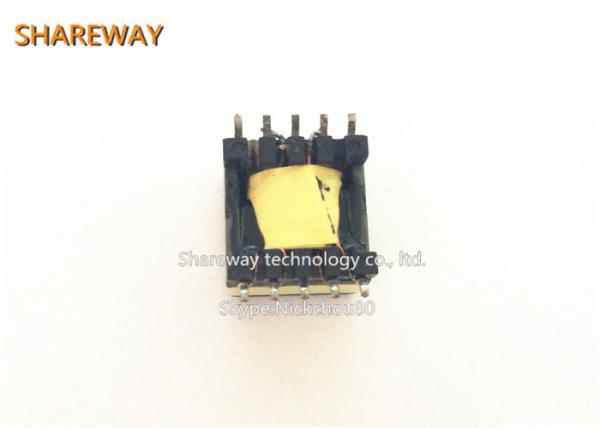

Product picture:

13.46*12.7*17.75mm SMPS Flyback Transformer 6.2 g Weight PA6340-AL_
