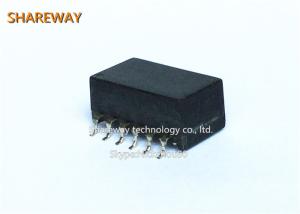

1000Base-T Ethernet Magnetic Transformers H1028NL 28.5816.265.84mm

Name: 1000BaseT Ethernet Magnetic Transformers H1028NL 28581626584mm
Brand: Shareway
Price: 1 USD

Brand Name : Shareway

Model Number : H1028NL

Certification : CE UL RoHS ISO9001:2008

Place of Origin : Guangdong China

MOQ : 100/500/1000

Price : Supportive

Payment Terms : TT,Paypal

Supply Ability : 3000K.PCS/Month

Delivery Time : Stock or 3 weeks

Packaging Details : 250/reel,15/tube

Product name : 28.58*16.26*5.84mm 1000Base-T Ethernet Magnetic Transformers H1028NL

Speed : Gigabit /1000Base-T

Type : Ethernet Magnetic Transformers

Ratio TX/RX : 1:1

Application : Transceivers Requiring

Pin : 20Pins

Contact Now

28.58*16.26*5.84mm 1000Base-T Ethernet Magnetic Transformers H1028NL

Description:

10/100Base-TX Dual Port Transformer Modules For Use with Transceivers Requiring 1:1 Transmit and Receiving Turns Ratios
RoHS reflow temperature rating 245°C
Meets IEEE 802.3 specification
Some models offer AutoMDIX capability

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C

Part Number	Insertion Loss (dB MAX)	Return Loss (dB TYP)				Crosstalk (dB TYP)				Differential to Common Mode Rejection (dB MIN)		Hipot (Vrms MIN)
Part Number	0.1-100 MHz	2-30 MHz	40 MHz	50 MHz	60-80 MHz	1 MHz	30 MHz	60 MHz	100 MHz	1-60 MHz	60-200 MHz	Hipot (Vrms MIN)
H1028NL	-0.5	-21	-17	-14.5	-12	-65	-55	-45	-35	-45	-35	1500
H1200NL	-1.0	-16	-14.4	-13	-12	-50	-45	-40	-35	-37	-35	1500

28.58*16.26*5.84mm 1000Base-T Ethernet Magnetic Transformers H1028NL

Shape and Dimensions:
